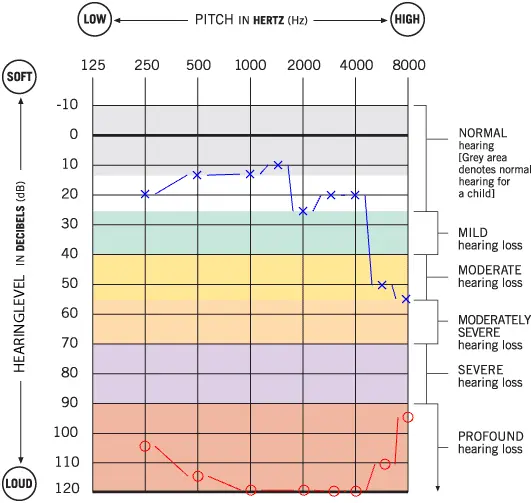

An audiogram is a visual representation of your hearing ability across different frequencies. The horizontal axis represents sound frequency (from low to high pitch), measured in Hertz (Hz), while the vertical axis shows sound intensity, measured in decibels (dB).

• Frequency (Hz): Frequencies range from low-pitched sounds (250 Hz) like a bass drum to high-pitched sounds (8,000 Hz) like a bird chirping.
• Intensity (dB): The decibel levels range from very soft sounds (0 dB) at the top to very loud sounds (120 dB) at the bottom. The lower the point on the graph, the louder the sound needed for you to hear it.

Your hearing thresholds are plotted on the graph, with symbols representing each ear:

• Right Ear (O): Marked with red circles.
• Left Ear (X): Marked with blue X's.

The closer the symbols are to the top of the graph, the better your hearing. A flat line across the top indicates normal hearing, while symbols lower on the chart indicate varying degrees of hearing loss.

Understanding your audiogram can help identify specific frequencies or intensity levels where you may have difficulty hearing. If you’re unsure, consult a hearing specialist to interpret your results.
